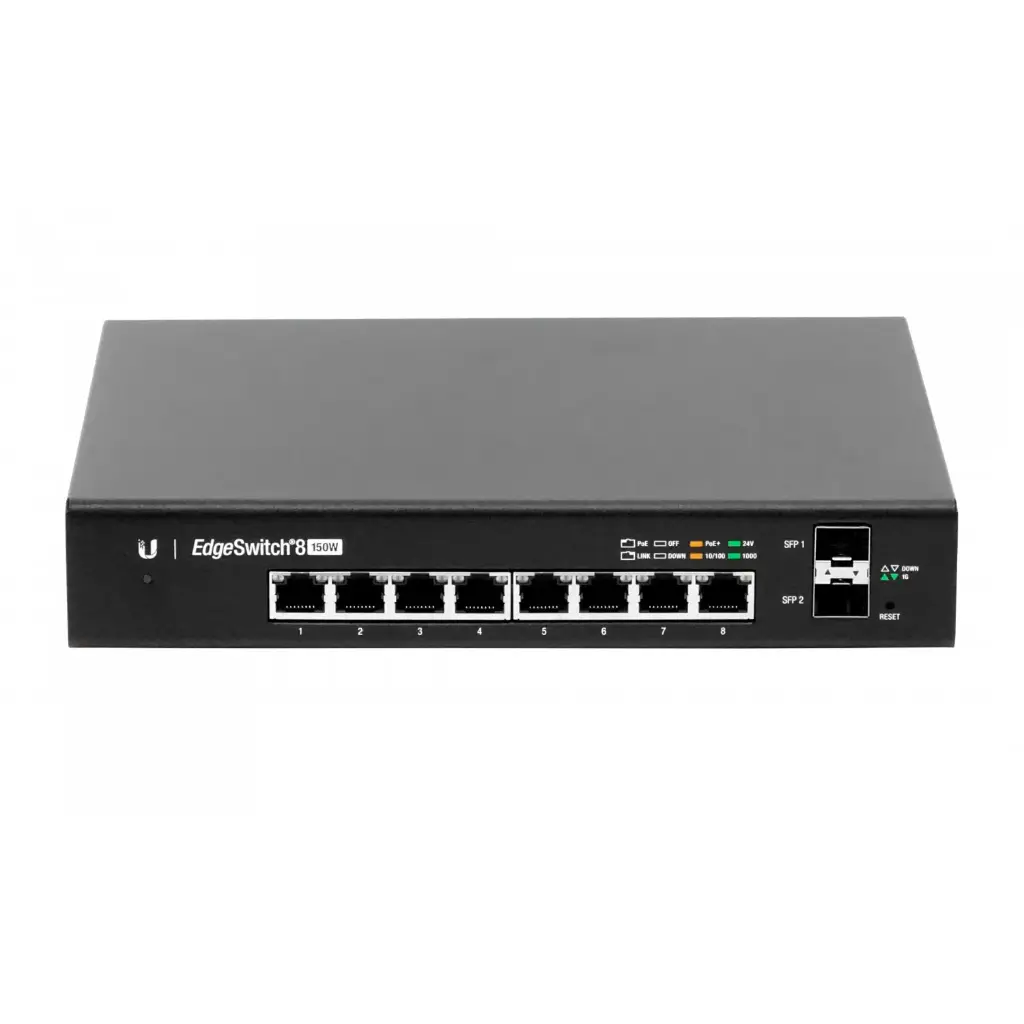

Switch Ubiquiti EdgeSwitch 8 POE +2SFP 20GBPS 150W

Management interface (1) RJ45 serial port, Ethernet In/Out-Band

Networking interface (8) GbE RJ45 ports

(2) 1G SFP ports

PoE interface (8) PoE/PoE+ 2-pair (Pins 1, 2+; 3, 6-)

(8) 24V/0.7A passive PoE 2-pair (Pins 4, 5+; 7, 8-)

Total non-blocking throughput 10 Gbps

Switching capacity 20 Gbps

Forwarding rate 14.88 Mpps

Power method 100-240V AC, universal input, 50/60 Hz, AC/DC integrated PSU

42–56V DC terminal block, external input (Self-correcting polarity protection)

Power supply AC/DC, internal, 150W DC

Max. power consumption 20W (Excludes PoE output)

Total PoE available 150W

Max. PoE wattage per portby PSE PoE+: 34.2W

Passive PoE: 17W

Voltage range PoE mode PoE+: 50–57V

Passive PoE: 20–27V

ESD/EMP protection Air/contact: ± 24kV

LEDs System: status

Ethernet ports: PoE, link/speed/activity

SFP ports: link/speed/activity

Button Factory reset

Shock and vibration ETSI300-019-1.4 Standard

Ambient operating temperature Internal AC/DC at 150W: -25 to 45° C (-13 to 113° F)

Internal AC/DC at 100W: -25 to 55° C (-13 to 131° F)

External DC: -25 to 60° C (-13 to 140° F)

Ambient operating humidity 5 to 95% noncondensing

Certifications CE, FCC, IC

NDAA Compliant Yes
